Positive Pressure/Vacuum Shunt

Positive Pressure/Vacuum Shunt

PDR Series

  • Large diameter inlet and outlet are optional

  • Low flow resistance

  • Solution of hose diversion

Contact Us download
Products

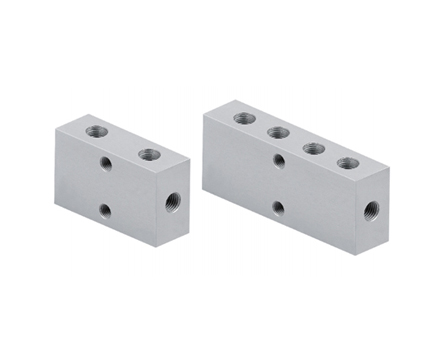

Features Features

Positive Pressure/Vacuum Shunt
Positive Pressure/Vacuum Shunt

  • One vacuum generator can be connected to multiple suction cups through the shunt


  • The compressed air is supplied to multiple vacuum generators through the shunt

Selection Guide Selection Guide

PDR - G2F - 5 - G1F

①       ②    ③    ④



① series② Connection thread③ Branching port quantity④ Branching port connection thread
PDRG2F - G1/4 female5-5 branching portsG1F - G1/8 female
G3F - G3/8 female9-9 branching portsG2F - G1/4 female


Selection



5 branching ports9 branching ports
Main port G1/4PDR-G2F-5-G1FPDR-G2F-9-G1F
Main port G3/8PDR-G3F-5-G2FPDR-G3F-9-G2F


ModelBranching port connection thread

weight

 (g)

PDR-G2F-5-G1F5 x G1/8 female90
PDR-G3F-5-G2F5 x G1/4 female110
PDR-G2F-9-G1F9 x G1/8 female120
PDR-G3F-9-G2F9 x G1/4 female240


Dimensions Dimensions

Thin Lip Connectors

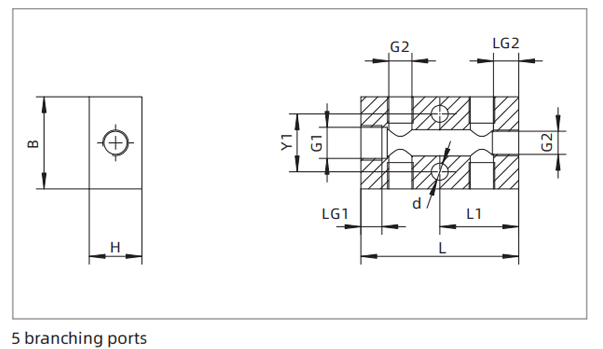

Dimensions PDR Series Positive Pressure Vacuum Shunt 5 Branching Ports


Model/SizeBdG1G2HL1LG1LG2Y1
PDR-G2F-5-G1F356.5G1/4G1/8203010922
PDR-G3F-5-G2F406.5G3/8G1/42536131127


Dimensions PDR Series Positive Pressure Vacuum Shunt 9 Branching Ports


Model/SizeBdG1G2HLL1LG1LG2Y1
PDR-G2F-9-G1F356.5G1/4G1/820904513922
PDR-G3F-9-G2F406.5G3/8G1/42511658131127
