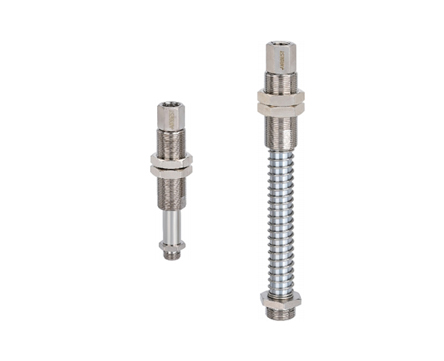

Universal Level Compensator

Universal Level Compensator

Oilless, wear-resistant bushing is built in the guide sleeve
Built-in buffer spring and external buffer spring
Various buffer stroke specifications are available
Light duty and heavy-duty can be selected

Selection Guide

 

PSPT Series Mounting Parts

PSPT - I 10 LM5 G1M - M16 - H

① ② ③ ④ ⑤ ⑥ ⑦

① Series	② Buffer type	③ Buffer stroke	④ Rotary type	⑤ Suction cup connection	⑥ Mounting thread	⑦ Heavy load
PSPT	I - Built-in spring	10 60	Nil - Vertical rotating	G1F - G1/8 female thread	M16 - M16×1	Nil - Standard
	E - External spring	20 75	R - Vertical non-rotating	G2F - G1/4 female thread	M18 - M18×1	H - Heavy load
		30 90	LM5 - Lateral rotating	G1M - G1/8 male thread
		50 110		G2M - G1/4 male thread
				G3M - G3/8 male thread

Selection

Model/Connection thread
G1M	LM5G1M	G1F	G2F
PSPT-I10G1M-M16	PSPT-I10LM5G1M-M16	PSPT-I10G1F-M16	PSPT-I10G2F-M18 PSPT-I10G2F-M18-H
PSPT-I20G1M-M16	PSPT-I20LM5G1M-M16	PSPT-I20G1F-M16	PSPT-I20G2F-M18 PSPT-I20G2F-M18-H
PSPT-I30G1M-M16	PSPT-I30LM5G1M-M16	PSPT-I30G1F-M16	PSPT-I30G2F-M18 PSPT-I30G2F-M18-H
PSPT-I50G1M-M16	PSPT-I50LM5G1M-M16	PSPT-I50G1F-M16	PSPT-I50G2F-M18 PSPT-I50G2F-M18-H

Model/Connection thread
G2M	RG2M	RG3M	G3M
PSPT-I10G2M-M18 PSPT-E60G2M-M18 PSPT-I10G2M-M18-H	PSPT-I10RG2M-M18	PSPT-I10RG3M-M18	PSPT-I10G3M-M18 PSPT-E60G3M-M18 PSPT-I10G3M-M18-H
PSPT-I20G2M-M18 PSPT-E75G2M-M18 PSPT-I20G2M-M18-H	PSPT-I20RG2M-M18	PSPT-I20RG3M-M18	PSPT-I20G3M-M18 PSPT-E75G3M-M18 PSPT-I20G3M-M18-H
PSPT-I30G2M-M18 PSPT-E90G2M-M18 PSPT-I30G2M-M18-H	PSPT-I30RG2M-M18	PSPT-I30RG3M-M18	PSPT-I30G3M-M18 PSPT-E90G3M-M18 PSPT-I30G3M-M18-H
PSPT-I50G2M-M18 PSPT-E110G2M-M18 PSPT-I50G2M-M18-H	PSPT-I50RG2M-M18	PSPT-I50RG3M-M18	PSPT-I50G3M-M18 PSPT-E110G3M-M18 PSPT-I50G3M-M18-H

Dimensions

 

Universal Level Compensator

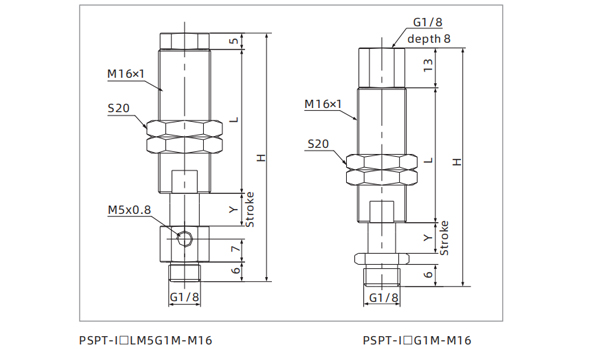

Dimensions Universal Level Compensato

Model/Size	H	L	Y	Weight g	F2 N	F2 N
PSPT-I10 G1M-M16	76	44	10	71	2	5.5
PSPT-I20 G1M-M16	86	44	20	89	2	5.5
PSPT-I30 G1M-M16	96	44	30	102	2	5.5
PSPT-I50 G1M-M16	147	75	50	135	2	5.5
PSPT-I10G1M-M16	76	44	10	80	2	5.5
PSPT-I20G1M-M16	86	44	20	85	2	5.5
PSPT-I30G1M-M16	96	44	30	107	2	5.5
PSPT-I50G1M-M16	147	75	50	132	2	5.5

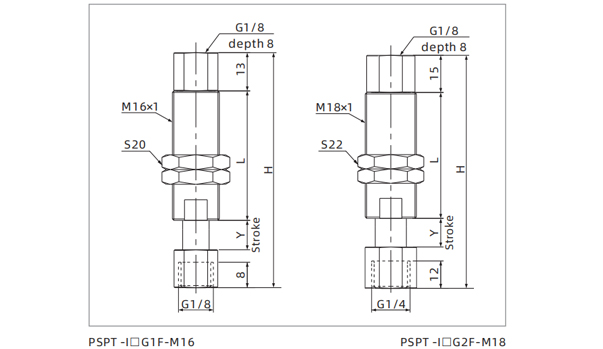

Dimensions Universal Level Compensator PSPT-IG1F-M16-PSPT-IG2F-M18

Model/Size	H	L	Y	Weight g	F2 N	F2 N
PSPT-I10G1F-M16	80	44	10	85	2	5.5
PSPT-I20G1F-M16	90	44	20	90	2	5.5
PSPT-I30G1F-M16	100	44	30	108	2	5.5
PSPT-I50G1F-M16	151	75	50	135	2	5.5
PSPT-I10G2F-M18	70.5	28	10	93	4	7
PSPT-I20G2F-M18	90.5	38	20	108	4	7
PSPT-I30G2F-M18	110.5	48	30	121	4	7
PSPT-I50G2F-M18	150.5	68	50	151	4	7
PSPT-I10G2F-M18-H	70.5	28	10	93	9	27
PSPT-I20G2F-M18-H	90.5	38	20	108	9	27
PSPT-I30G2F-M18-H	110.5	48	30	121	9	27
PSPT-I50G2F-M1 -H	150.5	68	50	151	9	27

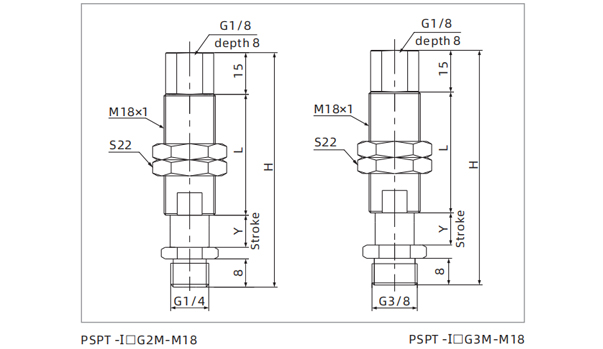

Dimensions Universal Level Compensator PSPT-IG2M-M18-PSPT-IG3M-M18

Model/Size	H	L	Y	Weight g	F2 N	F2 N
PSPT-I10G2M-M18	65	28	10	103	4.0	7.0
PSPT-I20G2M-M18	85	38	20	117	4.0	7.0
PSPT-I30G2M-M18	105	48	30	135	4.0	7.0
PSPT-I50G2M-M18	145	68	50	169	4.0	7.0
PSPT-I10G3M-M18	65	28	10	105	4.0	7.0
PSPT-I20G3M-M18	85	38	20	123	4.0	7.0
PSPT-I30G3M-M18	105	48	30	142	4.0	7.0
PSPT-I50G3M-M18	145	68	50	177	4.0	7.0

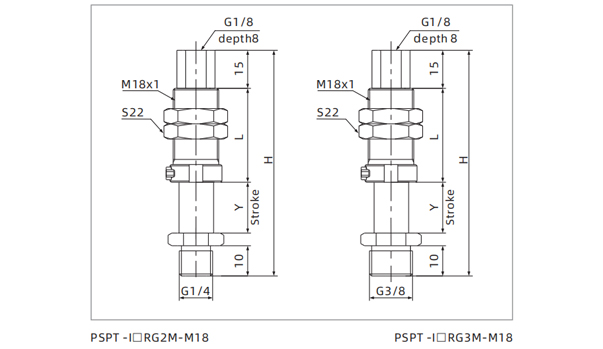

Dimensions Universal Level Compensator PSPT-IRG2M-M18-PSPT-IRG3M-M18

Model/Size	H	L	Y	Weight g	F2 N	F2 N
PSPT-I10RG2M-M18	70	30	10	103	4.0	7.0
PSPT-I20RG2M-M18	90	40	20	117	4.0	7.0
PSPT-I30RG2M-M18	110	50	30	135	4.0	7.0
PSPT-I50RG2M-M18	150	70	50	169	4.0	7.0
PSPT-I10RG3M-M18	70	30	10	105	4.0	7.0
PSPT-I20RG3M-M18	90	40	20	123	4.0	7.0
PSPT-I30RG3M-M18	110	50	30	142	4.0	7.0
PSPT-I50RG3M-M18	150	70	50	177	4.0	7.0

Note: "F1" means spring force at 0 strokes "F2" means spring force at max. stroke

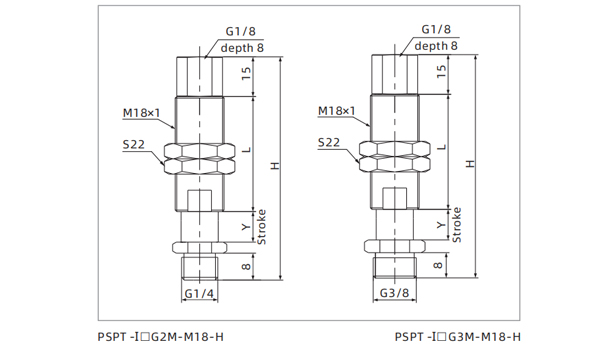

Dimensions Universal Level Compensator PSPT-IG2M-M18-H-PSPT-IG3M-M18-H

Model/Size	H	L	Y	Weight g	F2 N	F2 N
PSPT-I10G2M-M18-H	65	28	10	103	9.0	27.0
PSPT-I20G2M-M18-H	85	38	20	117	9.0	27.0
PSPT-I30G2M-M18-H	105	48	30	135	9.0	27.0
PSPT-I50G2M-M1 -H	145	68	50	169	9.0	27.0
PSPT-I10G3M-M18-H	65	28	10	105	9.0	27.0
PSPT-I20G3M-M18-H	85	38	20	123	9.0	27.0
PSPT-I30G3M-M18-H	105	48	30	142	9.0	27.0
PSPT-I50G3M-M1 -H	145	68	50	177	9.0	27.0

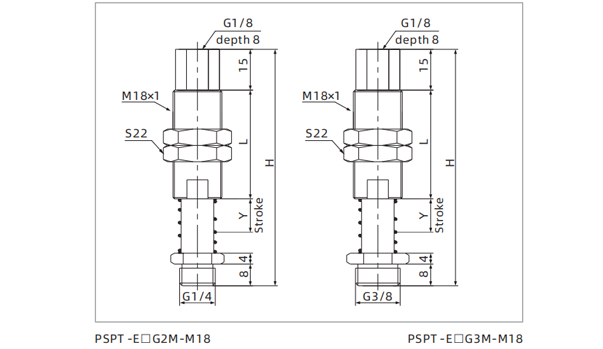

Dimensions Universal Level Compensator PSPT-EG2M-M18-PSPT-EG3M-M18

Model/Size	H	L	Y	Weight g	F2 N	F2 N
PSPT-E60G2M-M18	150	40	60	171	4.5	17.0
PSPT-E75G2M-M18	170	40	75	185	4.5	17.0
PSPT-E90G2M-M18	185	40	90	196	4.5	17.0
PSPT-E110G2M-M18	205	40	110	216	4.5	17.0
PSPT-E60G3M-M18	150	40	60	176	4.5	17.0
PSPT-E75G3M-M18	170	40	75	192	4.5	17.0
PSPT-E90G3M-M18	185	40	90	205	4.5	17.0
PSPT-E110G3M-M18	205	40	110	221	4.5	17.0

Note: "F1" means spring force at 0 strokes, and "F2" means spring force at max. stroke
