Name: SGP Series
Brand: AIRBEST (CHANGXING) TECHNOLOGY CO., LTD.

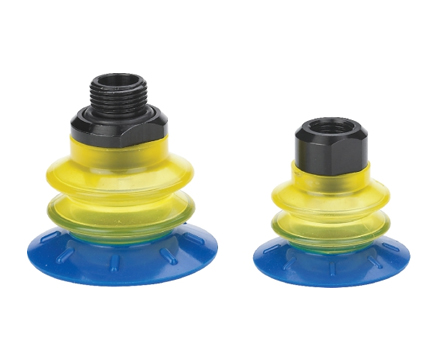

Features

 

PU Bellows Suction Cup

2.5 Bellows
Internal support structure at the bottom
PU material
Various sizes are available

Selection Guide

 

SGP Series Vacuum Suction Cup

SGP 35 U - G1F

① ② ③ ④

① Series	② Diameter	③ Material & Hardness	④ Connection thread
SGP	25 - φ25mm	U - PU 55	Nil - Suction cup only
	35 - φ35mm	UD - PU 30 55	G1M - G1/8 male thread
	45 - φ45mm		G2M - G1/4 male thread
	55 - φ55mm		G3M - G3/8 male thread
			G1F - G1/8 female thread
			G2F - G1/4 female thread
			G3F - G3/8 female thread

Selection

Model	Connection thread
Model	M - Male thread	F - Female thread
SGP25□	SGP25□-G1M	SGP25□-G1F
SGP35□	SGP35□-G1M	SGP35□-G1F
SGP45□	SGP45□-G1M	SGP45□-G1F
SGP55□	SGP55□-G2M SGP55□-G3M	SGP55□-G2F SGP55□-G3F

Technical parameters

Model	Pull-out force N	Inner volume cm³	Min. curve radius of the workpiece mm	Weight g	Recommended hose dia. mm	MPQ pcs
SGP25	22	3	31	2	6	5
SGP35	43	6	42	4.8	6	5
SGP45	71	13	54	11	6	1
SGP55	106	23	64	19.9	8	1

Note: Testing vacuum level -60kPa, a workpiece with a smooth and clean surface. The data of pull-out force as above are figured out without considering safety factors. The data may be different according to different workpiece surfaces. Recommend the length of the vacuum hose to be as short as possible, max 2m.

Dimensions

 

PU Bellows Suction Cup

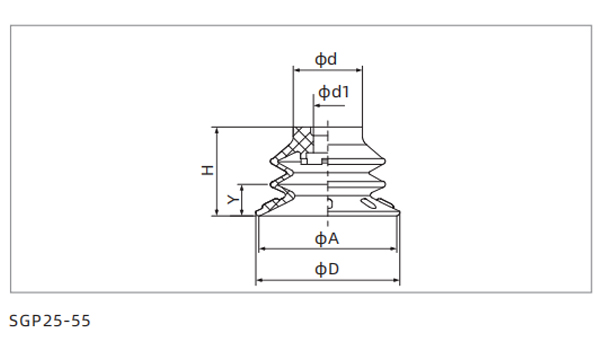

Dimensions PU Bellows Suction Cup SGP25-55

Model/Size	D	H	A	d	d1	Y
SGP25□	25	15.5	24	12	5	5.5
SGP35□	35	22.3	33.4	16.5	5	8.4
SGP45□	45	29.3	42.8	16.8	6.6	11.5
SGP55□	55	36.3	52.4	27.5	10.5	12.9

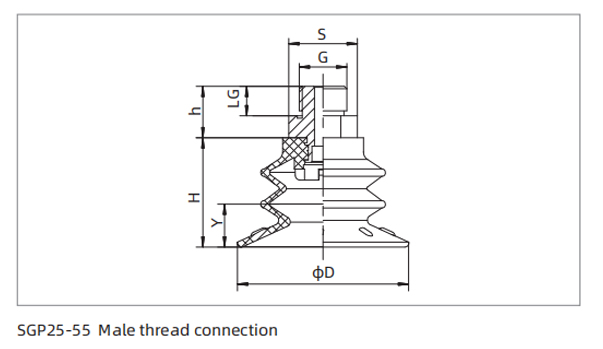

Dimensions PU Bellows Suction Cup SGP25-55 Male Thread Connection

Model/Size	D	H	G	h	LG	S	Y
SGP25□-G1M	25	15.5	G1/8	7.8	6	13	5.5
SGP35□-G1M	35	22.3	G1/8	7.8	6	13	8.4
SGP45□-G1M	45	29.3	G1/8	12	6	17	11.5
SGP55□-G2M	55	36.3	G1/4	17	9	24	12.9
SGP55□-G3M	55	36.3	G3/8	18	10	24	12.9

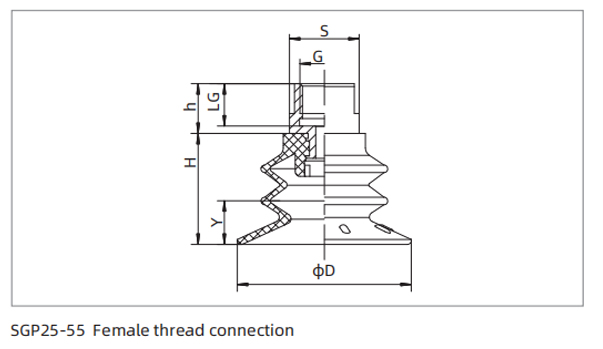

Dimensions PU Bellows Suction Cup SGP25-55 Female Thread Connection

Model/Size	D	H	G	h	LG	S	Y
SGP25□-G1F	25	15.5	G1/8	8	7	13	5.5
SGP35□-G1F	35	22.3	G1/8	8	7	13	8.4
SGP45□-G1F	45	29.3	G1/8	10	7	17	11.5
SGP55□-G2F	55	36.3	G1/4	13	10	24	12.9
SGP55□-G3F	55	36.3	G3/8	13	11	24	12.9

Mounting Accessories

 

PU Bellows Suction Cup

Item	Model		Applicable suction cup
Item	M - Male thread	F - Female thread	Applicable suction cup
Fitting for suction cup	PJS-G1M-SF1-EW	PJS-G1F-SF1-EW	SGP25, 35
	PJS-G1M-SF2-EW	PJS-G1F-SF2-EW	SGP45
	PJS-G2M-SF3-EW	PJS-G2F-SF3-EW	SGP55
	PJS-G3M-SF3-EW	PJS-G3F-SF3-EW	SGP55
